With the full kit you will have the following choices:
Model Specific Struts and Bags
Air Management Color
Number of Compressors

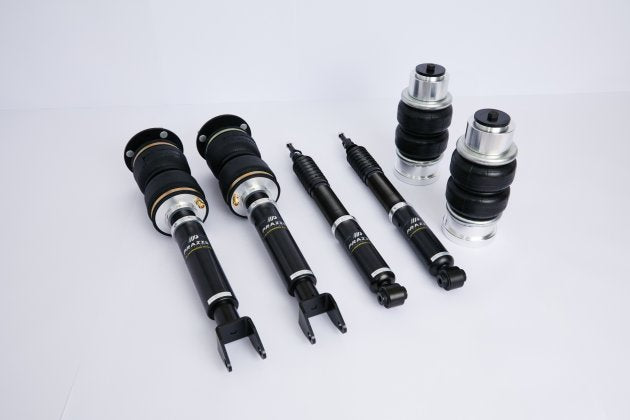

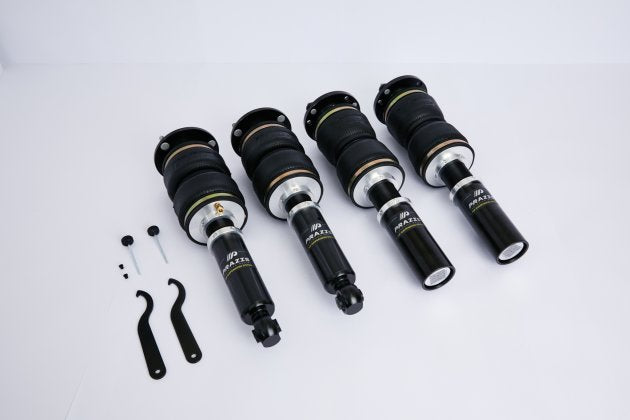

Struts and Bags:
Air spring*4
Shock absorber with 32-level adjustable damping*4
Non-Adjustable Pillowball top mount
Features of Prazis Struts and bags :
Easily tune damper with 32-level adjustable damping.
Exclusive high-performance damping therapy.
Monotube design damper for increasing stability and comfort
Bottom mount adjustable.
4 Way Management:
Product Design:
Made from an entire piece of raw aluminum (6061) and bronze by CNC cutting.
Anodizing surface treatment.
Two colors are available: Matte Black / Gloss Silver
Product Functions:
Movable valve key will follow the movement when the corresponding wheel moves.
Comes with two remote controllers. One main wired remote control and one small wireless remote control.
6 presets of ride height for the main and small controller.
Use the scroll instead of the normal button to adjust the pressure value more precisely.
Suspension pressure can be adjusted from 1 PSI.
The pressure of air tank can be adjusted from 150 PSI ~ 200 PSI.
Auto drain valve.
Control the compressor(s) manually. ON/OFF/SINGLE COMPRESSOR/DUAL COMPRESSORS
Low voltage setup. When the car is at a low voltage the compressor will not start until starting the car and use the voltage of car generator. It's a safety function.
Installation simplified.
Waterproof design.

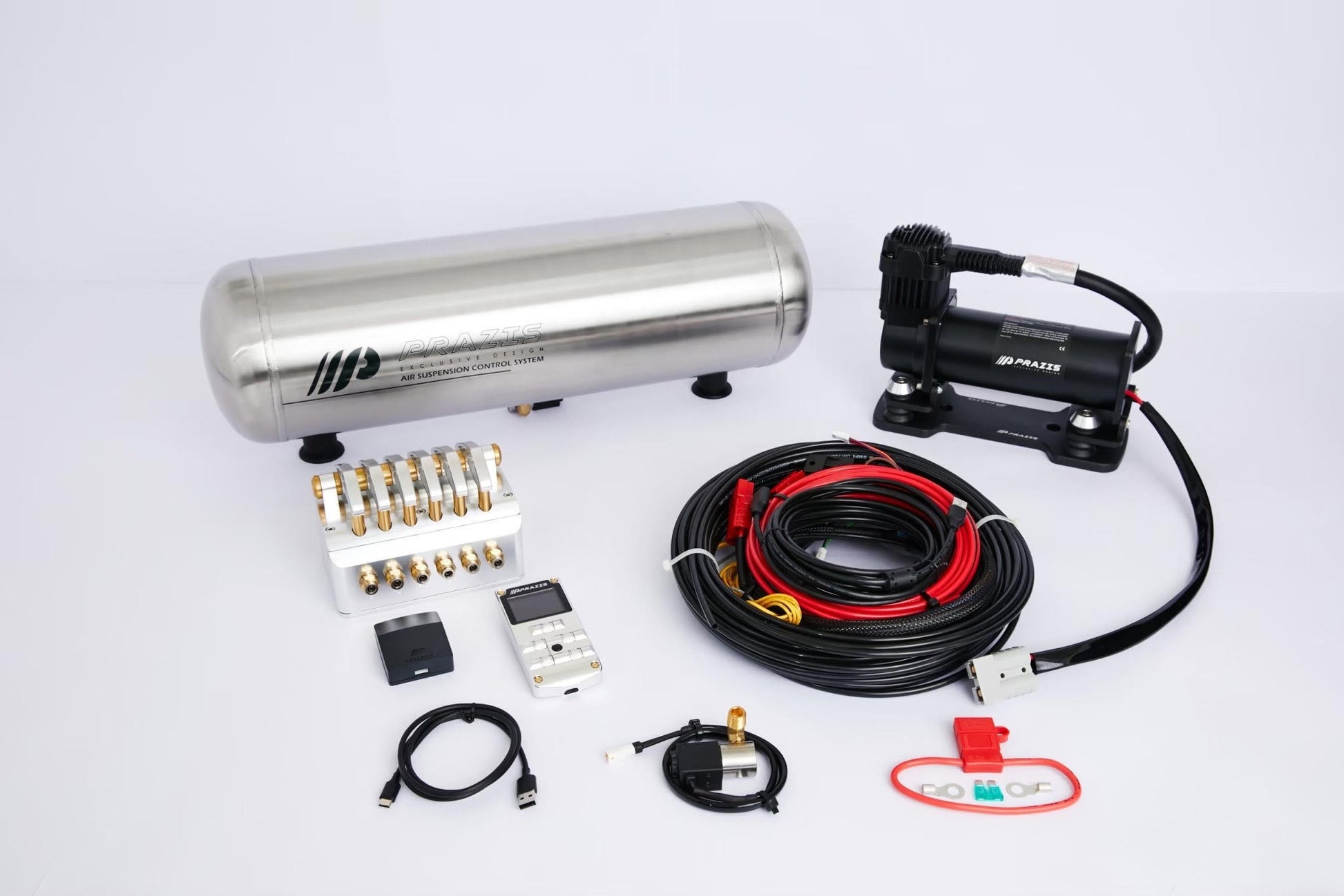

Includes:
Control system packageｘ1－Control system, solenoid valve, pressure sensor, all contained inside.
Remote controlｘ2－One main wired remote control and one small wireless remote control.
Wiring harness－Fuse holder, air compressor power cord, controller wiring harness, 25M 6x4mm Nylon line.

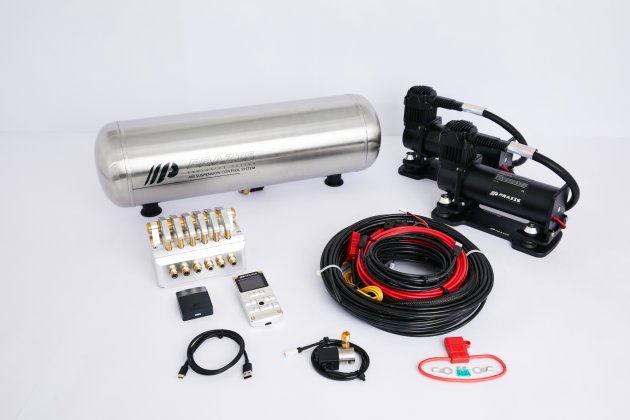

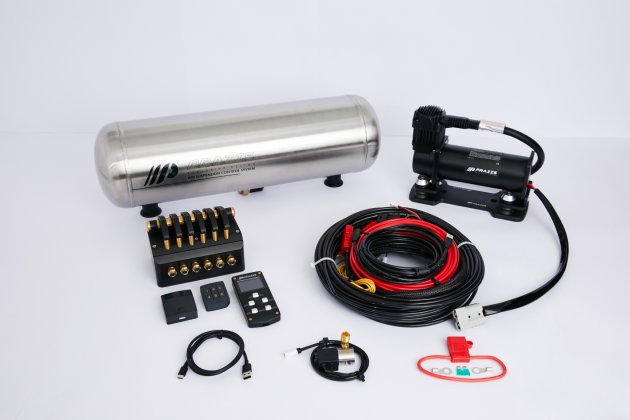

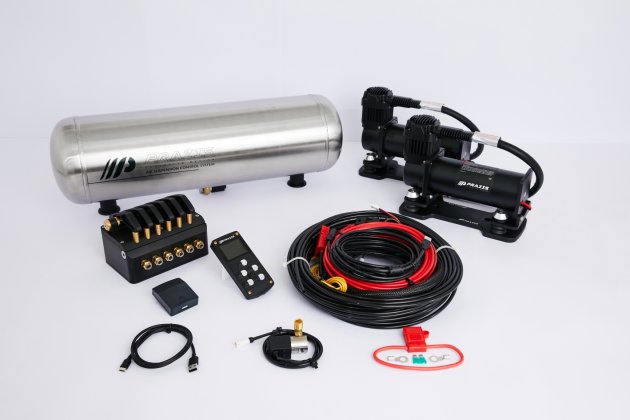

Optional Full Kit:
15L stainless steel air tankｘ1－Tank thickness 2mm, five pcs of ¼ PT holes below.
Cylindrical baseｘ2－black base, screws.
High-speed air compressor 444C－Max. working pressure: 200 PSI. (option for 2 compressors)
Vibration-free mounting for compressors－To reduce vibration and lower the noise from air compressor.
note: 17-22 NSX includes Electronic Damping Cancellation Kit which may require wiring.
Please contact us for questions or for international shipping quotes.
