4 Way Management
Product Design
- Made from an entire piece of raw aluminum (6061) and bronze by CNC cutting.
- Anodizing surface treatment.

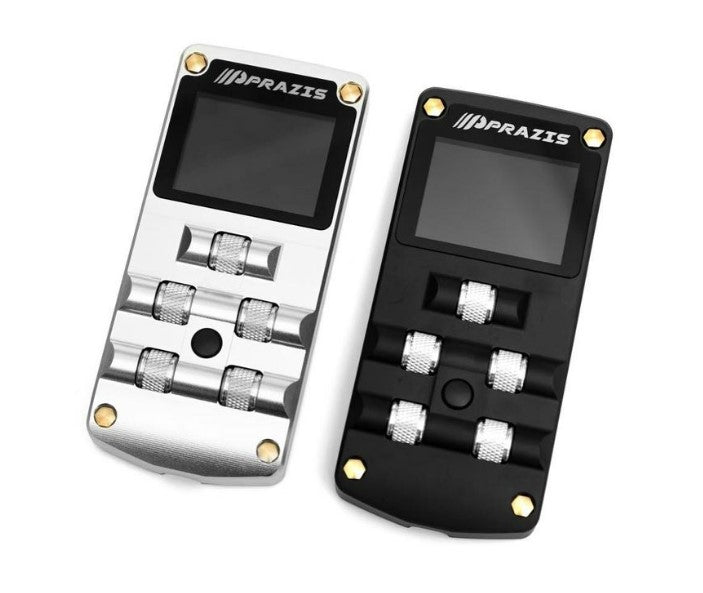

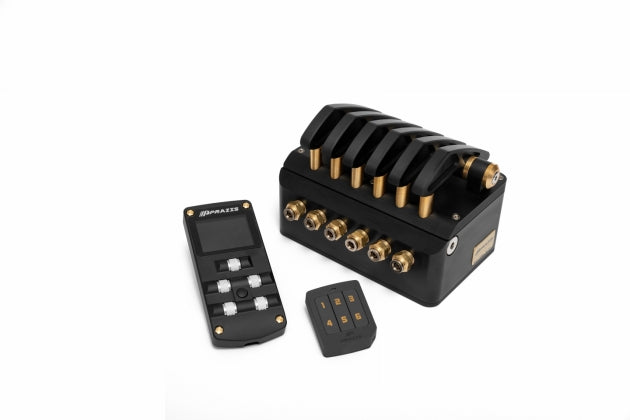

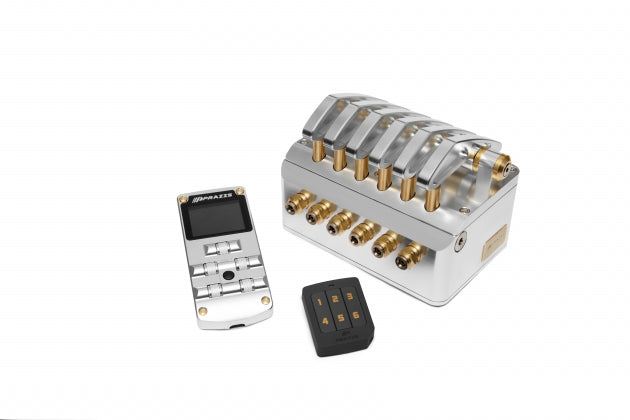

- Two colors are available: Matte Black / Gloss Silver
- Movable valve key will follow the movement when the corresponding wheel moves.

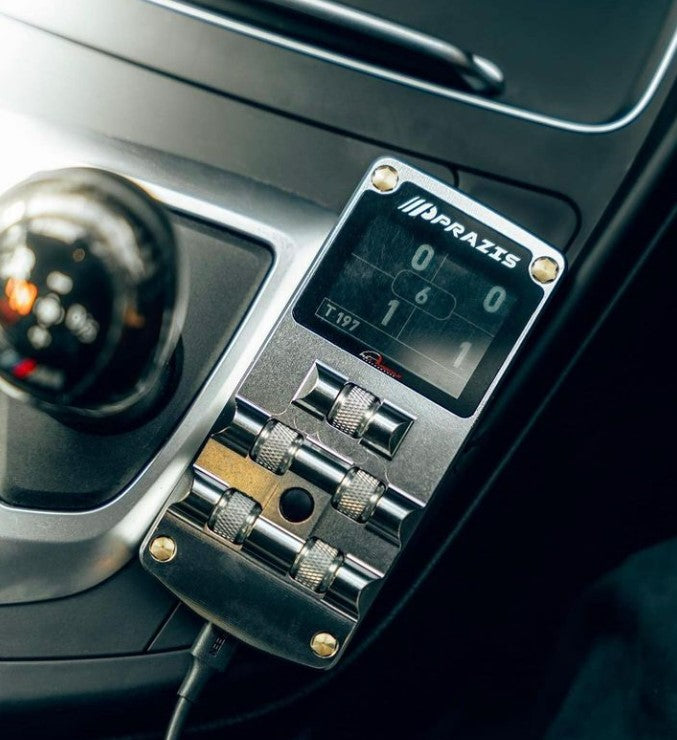

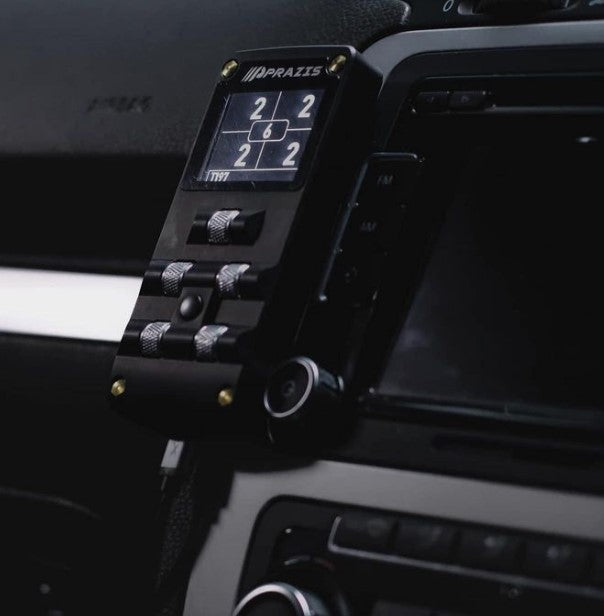

- Comes with two remote controllers. One main wired remote control and one small wireless remote control.
- 6 presets of ride height for the main and small controller.
- Use the scroll instead of the normal button to adjust the pressure value more precisely.
- Suspension pressure can be adjusted from 1 PSI.
- The pressure of air tank can be adjusted from 150 PSI ~ 200 PSI.
- Auto drain valve.
- Control the compressor(s) manually. ON/OFF/SINGLE COMPRESSOR/DUAL COMPRESSORS
- Low voltage setup. When the car is at a low voltage the compressor will not start until starting the car and use the voltage of car generator. It's a safety function.
- Installation simplified.
- Waterproof design.

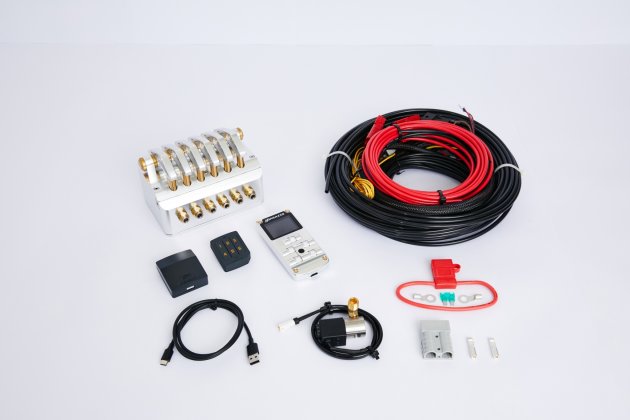

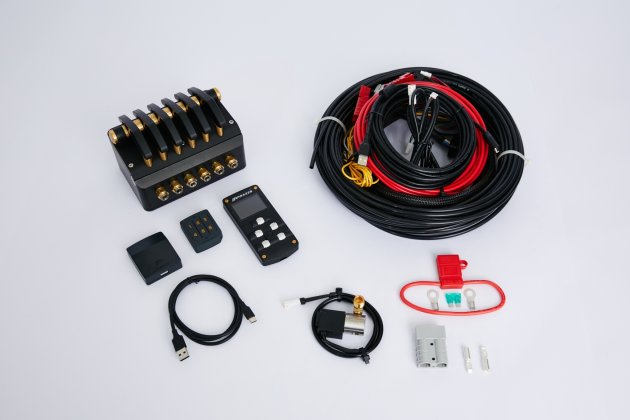

Includes:
- Control system packageｘ1－Control system, solenoid valve, pressure sensor, all contained inside.
- Remote controlｘ2－One main wired remote control and one small wireless remote control.
- Wiring harness－Fuse holder, air compressor power cord, controller wiring harness, 25M 6x4mm Nylon line.

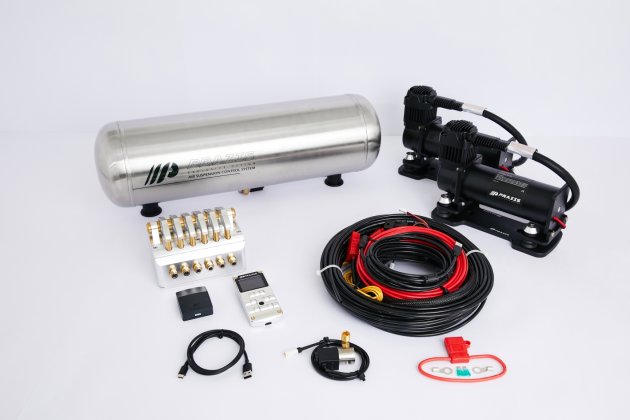

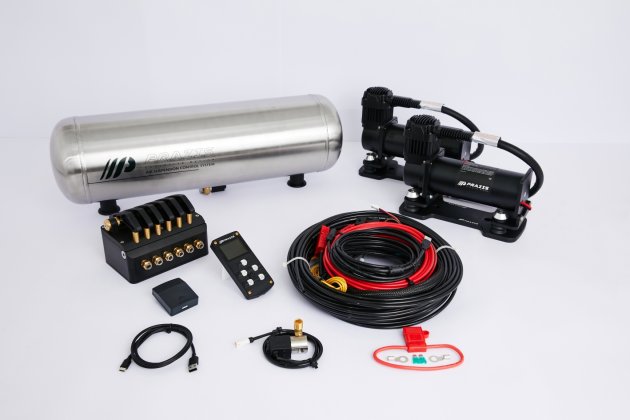

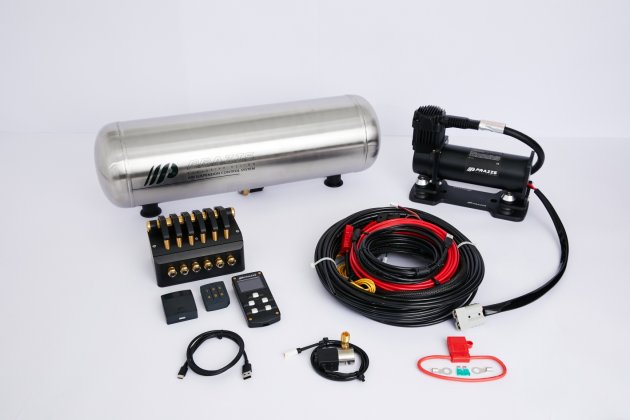

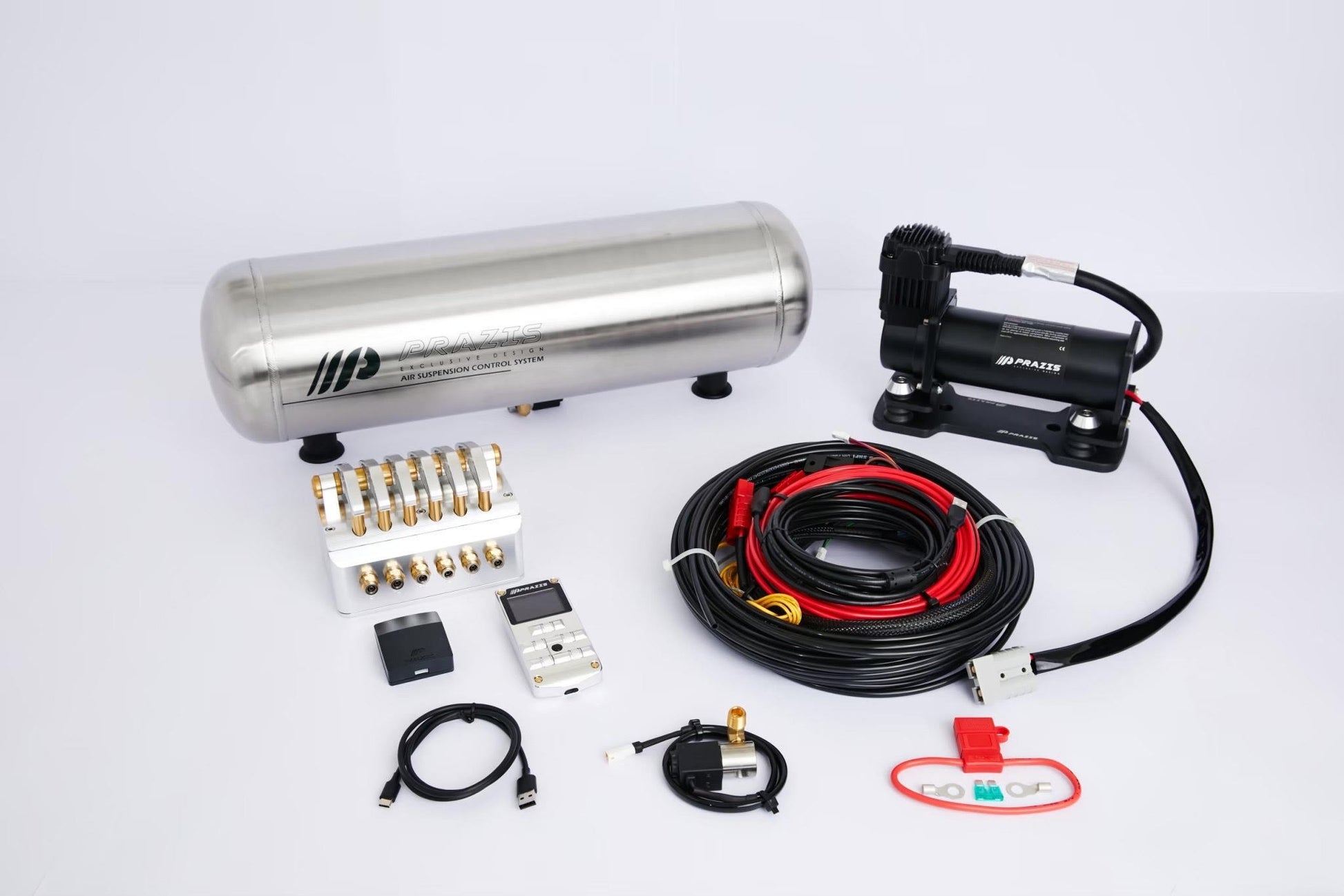

Optional Full Kit:
- 15L stainless steel air tankｘ1－Tank thickness 2mm, five pcs of ¼ PT holes below.
- Cylindrical baseｘ2－black base, screws.
- High-speed air compressor 444C－Max. working pressure: 200 PSI. (option for 2 compressors)
- Vibration-free mounting for compressors－To reduce vibration and lower the noise from air compressor.
Please contact us for questions or for international shipping quotes.
